Nordic TS2 - New compact air handling unit
Space-saving ventilation with high heat recovery. Nordic TS2 is designed for apartments and smaller houses where every square meter matters. The unit can be installed above a washing machine and tumble dryer or concealed inside a standard 600 mm wardrobe, for example in a hallway.
Nordic TS2 – available in the first quarter of 2027
With Flexit’s patented Stage Wheel technology, Nordic TS2 delivers exceptionally high heat recovery and energy-efficient operation – specifically engineered for Nordic climates.
Developed in collaboration with SINTEF and NTNU, Stage Wheel achieves up to 10 percentage points higher thermal efficiency than conventional rotating heat exchangers.
Dimensions
Width: 556 mm
Height: 471,5 mm
Depth: 524,4 mm
Nordic TS2 will be available during the first quarter of 2027.
Benefits of Nordic TS2
Maximum space efficiency
Fits above a stacked washer and dryer or inside a standard 600 mm wardrobe.
Documented performance
Delivers airflow up to 180 m³/h at 100 Pa with an SFP below 1.5 and a temperature efficiency of up to 90% in accordance with EN 13141-7 (unit temperature efficiency). Supplied with Stage Wheel rotary heat exchanger technology.
Designed for Nordic climates
Sized for homes up to approximately 150 m².
Easy for project planning

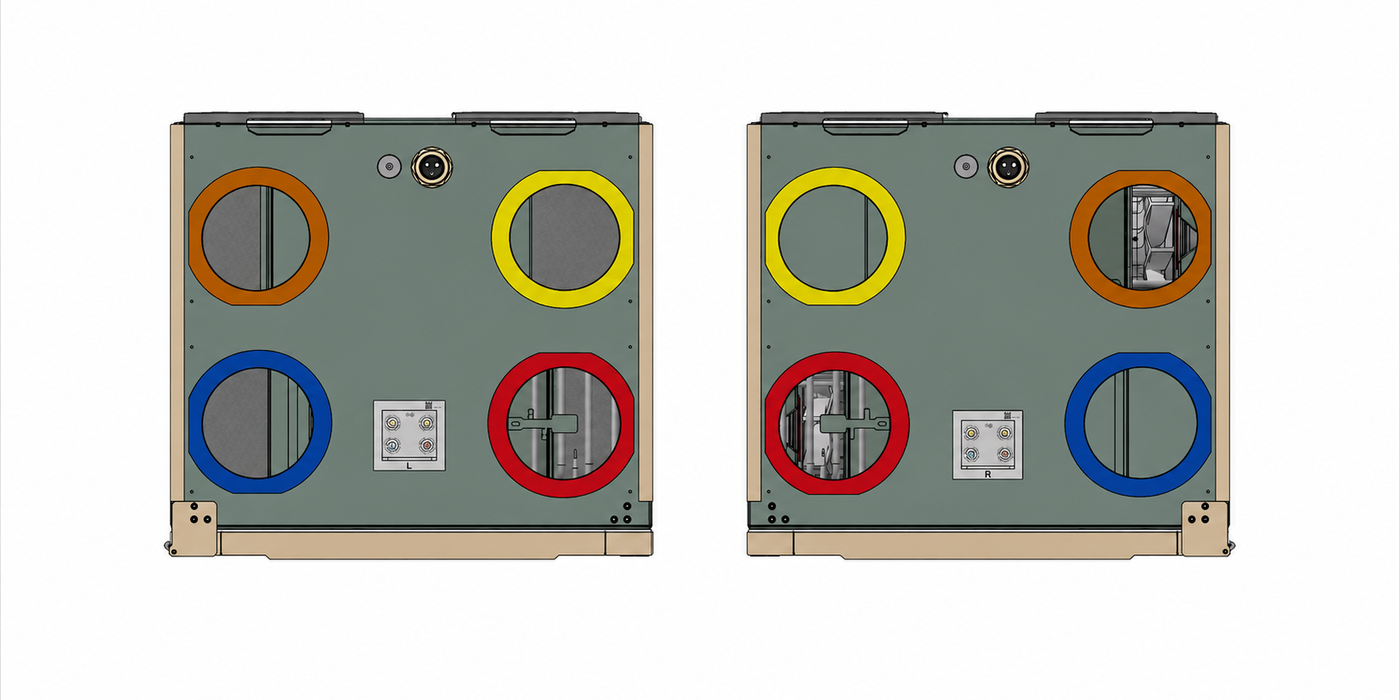

Available in both left- and right-hand versions, allowing the same duct layout to be used in mirrored apartment floor plans.
Flexible installation
Can be mounted either on a wall or suspended from the ceiling (using a ceiling mounting plate).
Controls
Supplied with Flexit GO.
This is preliminary information about a new product. Flexit reserves the right to make changes without prior notice.

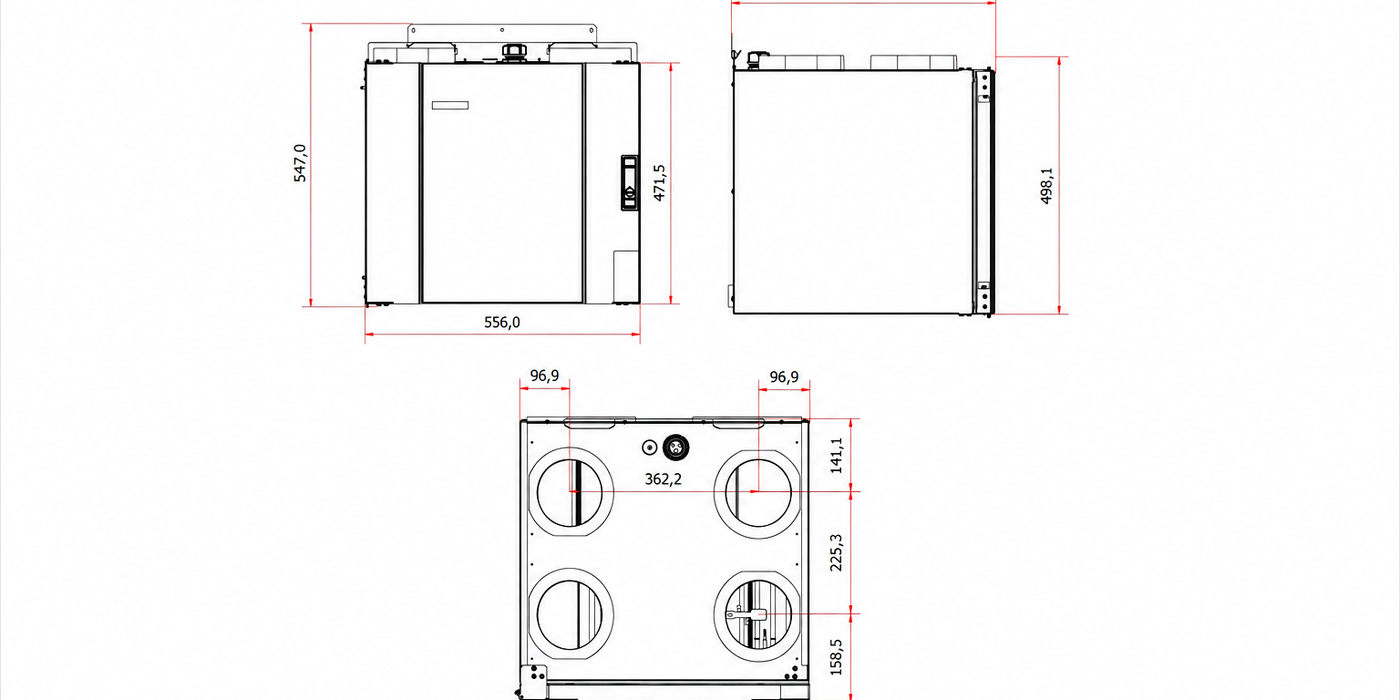

Dimension drawing and duct connection placement
